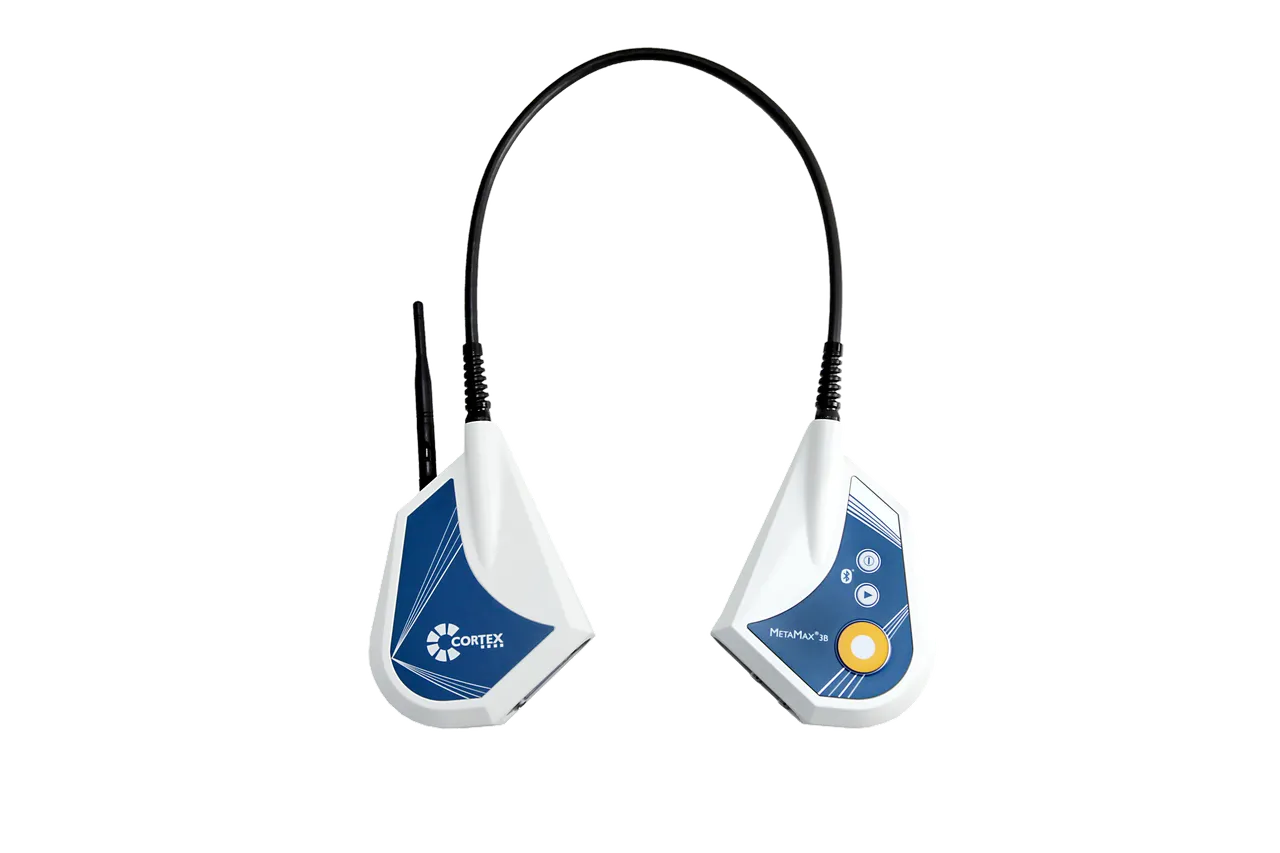

METAMAX® 3B
Portable. Wearable. Wireless.
Portable CPET system: flexible to use in the lab and in the field.
Mobile CPET in diagnostic quality: the METAMAX® 3B measures Breath-by-Breath wherever you test, in the lab or out in the field.

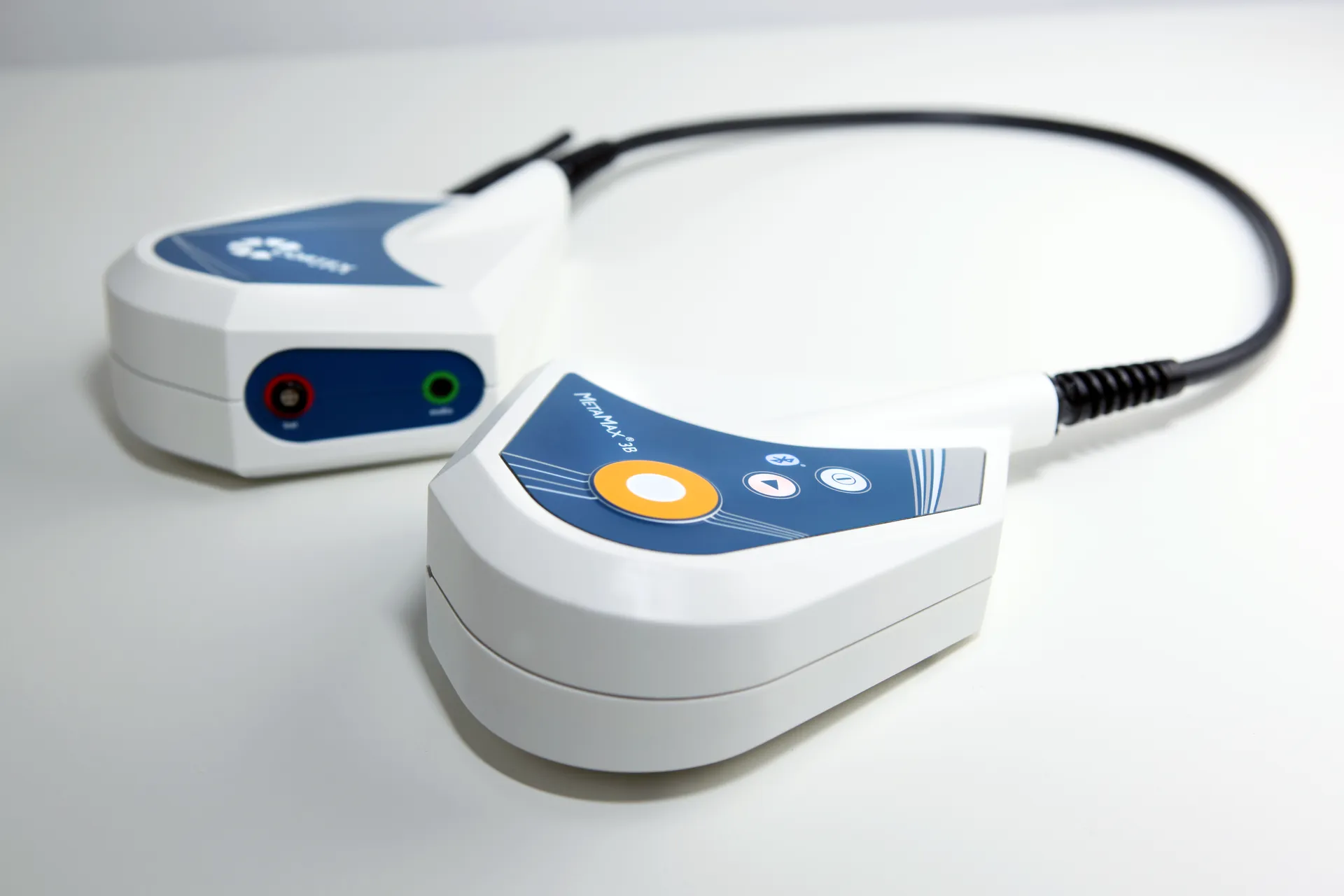

The complete measurement system weighs 580 grams, is worn on the body, and runs wirelessly on battery power. The METAMAX® 3B transmits every measurement telemetrically over more than 1,000 meters or stores it autonomously on board. Its range of applications extends from cardiac rehabilitation to the ISS.
Highlights
Mobile CPET without compromise.
-
Every breath analyzed
The system captures oxygen uptake, carbon dioxide output, and breathing volume for every single breath in real time. This high temporal resolution is the basis for assessing V̇O₂ kinetics and ventilatory thresholds, in the lab or out in the field.
-

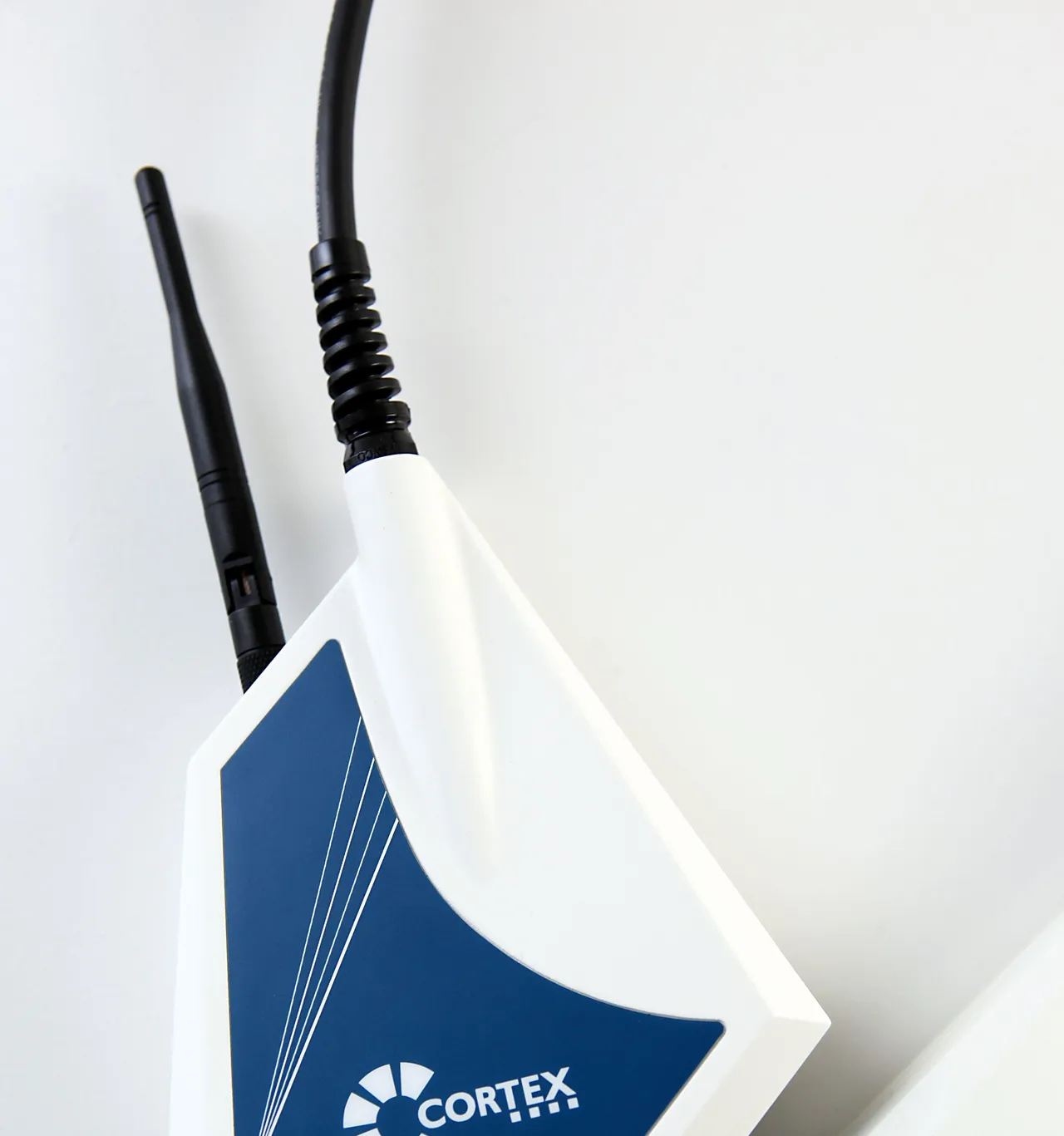

Range of more than 1,000 meters
Bidirectional telemetry transmits the data to the PC in real time via Long Range Bluetooth® with a range of more than 1,000 m, even without line of sight and without cables.
-
On-device operation
PC or standalone: the system is operated directly on the device or via MetaSoft® Studio on a laptop.
-

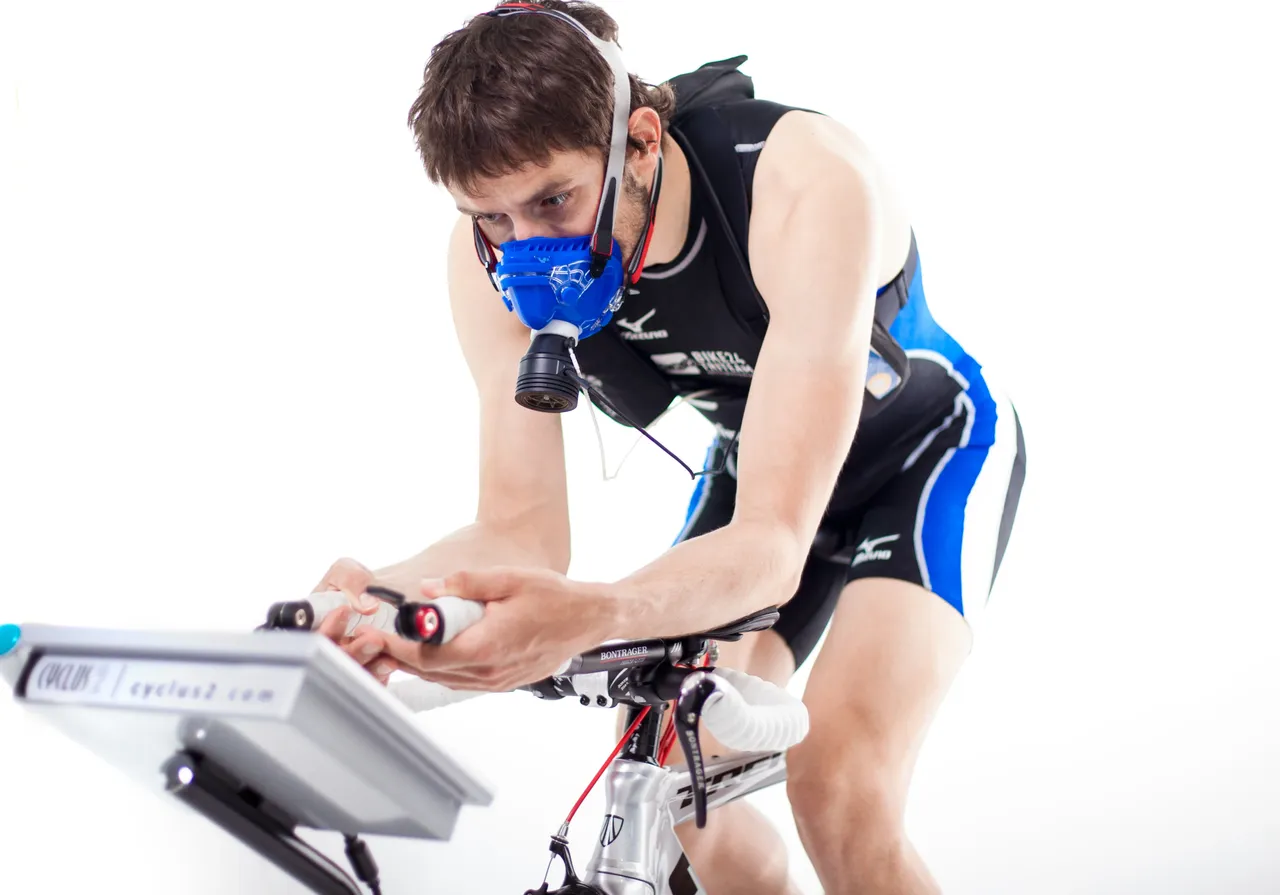

One Device, Twice the Benefit

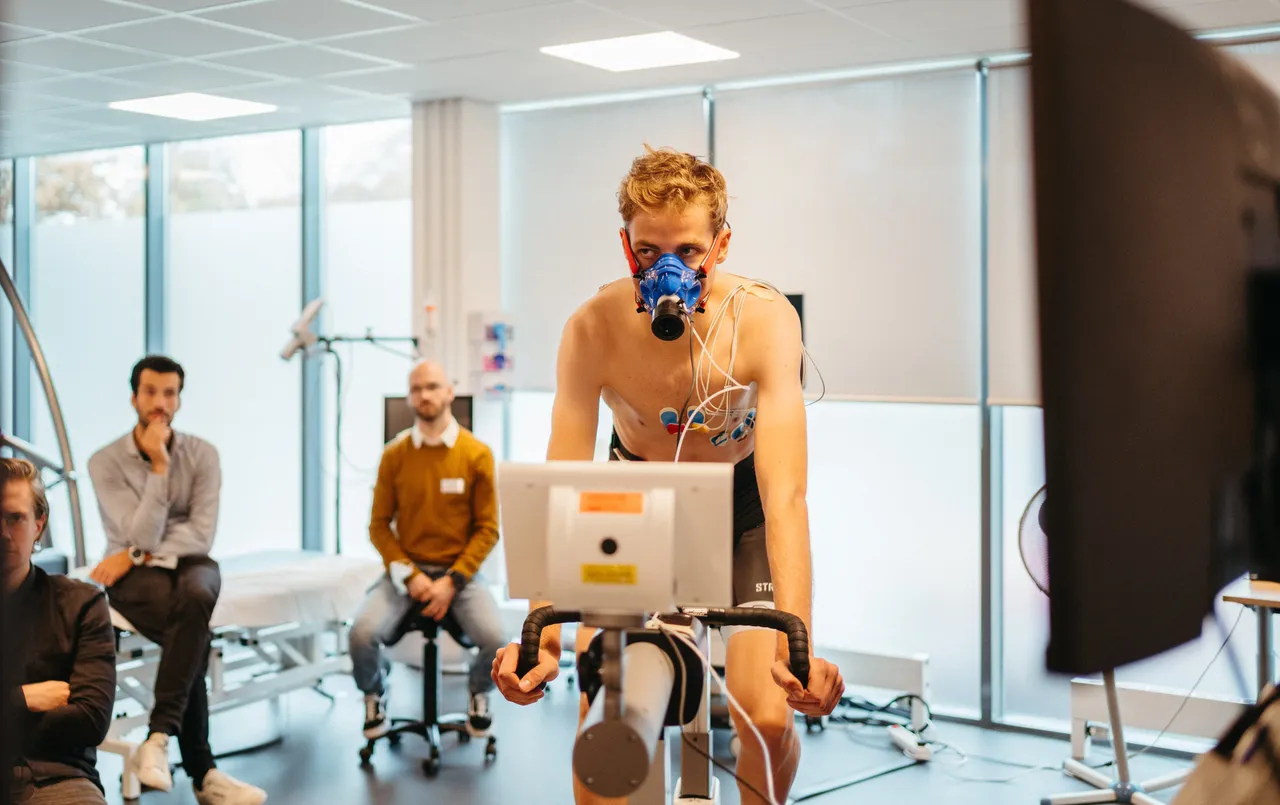

The optional Stationary Kit turns the mobile analyzer into a laboratory workstation with an external power supply and an extended sample line. One device for two fields of application.
-
Featherlight in use
At 580 g, worn in a chest or back carrying system, the device weight places practically no limit on the test subject during the test. The fit is free of pressure points.
-

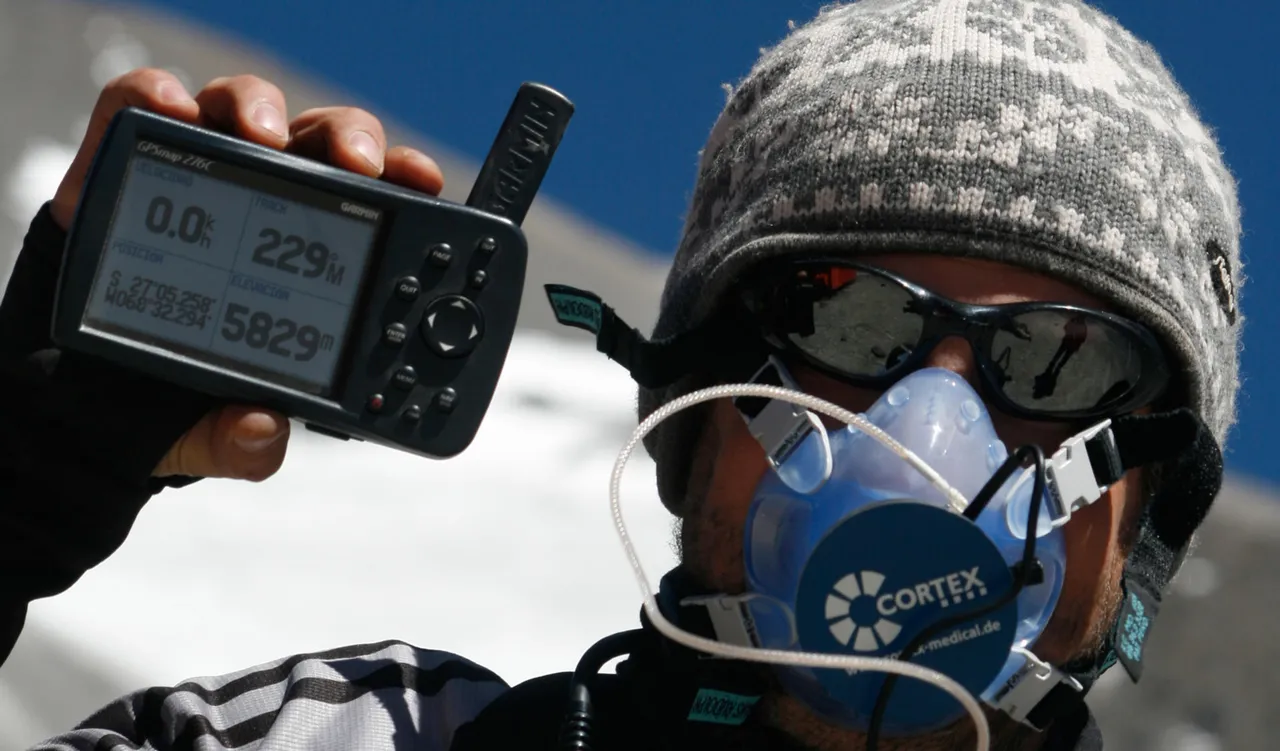

Ready for extreme conditions
Whether in snow and ice at down to -10 °C or in the desert at temperatures of up to 40 °C, the METAMAX® 3B is insensitive to extreme outdoor temperatures.

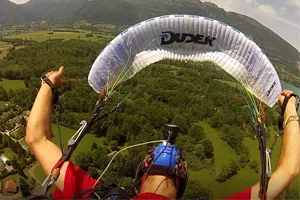

Where standard diagnostics can't go.
The METAMAX® 3B measures under conditions laboratory systems were never built for. In the water, under respiratory protection, under specialized equipment.
occupational medicineExercise testing under real conditions: the METAMAX® 3B captures the combined influence of heat, stress, respiratory protection, and heavy equipment directly during operational training.
MetaSoft® Studio
Reliably connected
An examination runs only as smoothly as the software behind it. MetaSoft® Studio controls the entire test workflow, from load protocol to connected devices to test report.
Every measurement is preserved as a raw data set and remains traceable. You focus on the examination while the technology works in the background.
Whether in the lab, in the practice, or in the field: it is the same software with the same workflow, and all results land in the same evaluation.
Clicking loads content from YouTube · Privacy notice
Missions
On a space mission

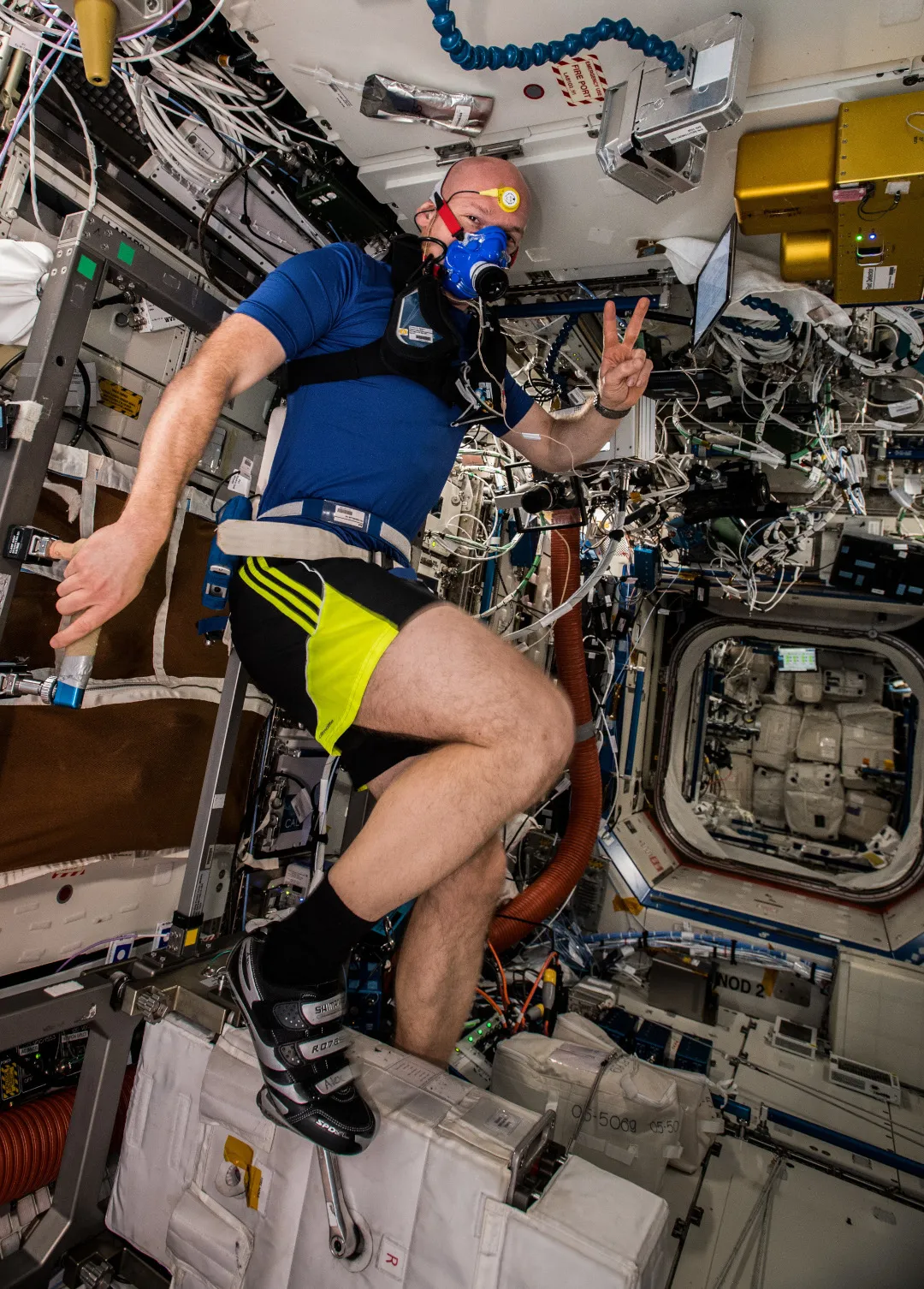

In the summer of 2018, German astronaut Dr. Alexander Gerst set out on a research mission aboard the ISS. On board for the first time was a mobile CPET device, our METAMAX® 3B. During his stay on the space station, Alexander Gerst used it several times to test his health status and fitness.
Studies with the METAMAX® 3B
The 5 latest publications from research and practice.
-
2026-010
Metabolic and ventilatory constraints in long COVID individuals
Salmam, Imane; Tittley, Jean; Drouin, Gilles; Perreault, Kadija; Desmeules, François; Paquette, Jean-Sébastien et al.
Respiratory Physiology & Neurobiology 339, 104504 · 2026
-
2026-008
Energy expenditure in women who participate to recreational mini-trampoline activities
Eynur, Aytül; Ünveren, Alparslan; Harmancı, Halit; Karavelioğlu, Mihri Barış; Gülaç, Meryem; Eynur, Baybars Recep; Altıntuğ, Meltem
BMC Sports Science, Medicine & Rehabilitation 18 (1), 323 · 2026
-
2026-007
Application of the Ballroom Aerobic Test protocol for assessing performance in standard-style dancesport athletes
Despot, Tamara; Plavec, Davor
PeerJ 14, e20556 · 2026
-
2026-005
Feasibility of energy expenditure estimation during outdoor walking using multimodal in-ear sensors: a preliminary validation study against indirect calorimetry
Camargo, David; Zellhuber, Incinur; Weber, Michael; Schönfelder, Martin
Scientific Reports 16 (1), 23724 · 2026
-
2026-003
Effects of Acute Altitude, Speed and Surface on Biomechanical Loading in Distance Running
Ueberschär, Olaf; Riedl, Marlene; Fleckenstein, Daniel; Falz, Roberto
Sensors (Basel, Switzerland) 26 (1) · 2026
Talk to our specialists.
Specifications
Measurement
- Measuring method
- Breath-by-Breath
- Flow (turbine)
- Reusable: ≤ 20 L/s, ± 2%Disposable: ≤ 14 L/s, ± 3% or ± 50 mL (whichever is greater)
Calibration & maintenance
- Gas sensors
- monthly, two-point
- Reusable turbine
- daily or before each test
- Disposable turbine
- factory-calibrated
- Air pressure
- every six months
- Sensor warm-up time
- 30 min
- O₂ sensor
- Replacement recommended after 6 months
Interfaces
- PC
- Long Range Bluetooth® receiver (USB)
- Radio standard
- Bluetooth® 2.1 + EDR, 2.4 GHz
- Telemetry range
- max. over 1,000 m
- Heart rate
- Bluetooth® Smart HR strap
- SpO₂
- Nonin Bluetooth® 3150 Wrist pulse oximeter
- ECG
- 14 ECG systems, includingGE CardioSoft, Schiller, Spacelabs Healthcare
Environment
- Operating temperature
- -10 °C to +40 °C
- Humidity
- ≤ 95% relative humidity, non-condensing
- Ambient pressure
- 500–1,050 mbar
Device & operation
- Dimensions
- 2 housing shells, each 120 × 110 × 45 mm
- Weight (without battery)
- 580 g
- Battery life
- approx. 5.5 h per battery
- Operating modes
- PC operationstandalone without PC
Approval
- Class
- Class IIa medical device according to 93/42/EEC
- Marking
- CE marking
Subject to technical changes.
FAQ
How far does the wireless transmission really reach?
The bidirectional Long Range Bluetooth® receiver is designed for ranges of more than 1,000 meters. In practice, the effective range depends on line of sight and surroundings. The METAMAX® 3B can also store measurement data in its internal data logger, independently of the PC. After the test, the data is transferred to the PC via Bluetooth® and evaluated in MetaSoft® Studio.
How often does the system need to be calibrated?
The gas sensors are adjusted once a month by two-point calibration with ambient air and calibration gas, and the gas-on-demand valve doses the calibration gas automatically. You calibrate the reusable turbine daily or before each test, while disposable turbines are factory-calibrated. Air pressure calibration is only scheduled every six months. The device warm-up time is 30 minutes.
Can the METAMAX® 3B also be used in stationary mode?
Yes. With the optional Stationary Kit, the mobile analyzer becomes a laboratory workstation with an external power supply and an extended sample line. One device, two fields of application.
Can I connect the METAMAX® 3B to an ECG?
Yes. Via MetaSoft® Studio, the METAMAX® 3B connects to 14 ECG systems, including GE CardioSoft, Schiller, and Spacelabs Healthcare. You can find the complete list on the METALYZER® 3B page.
